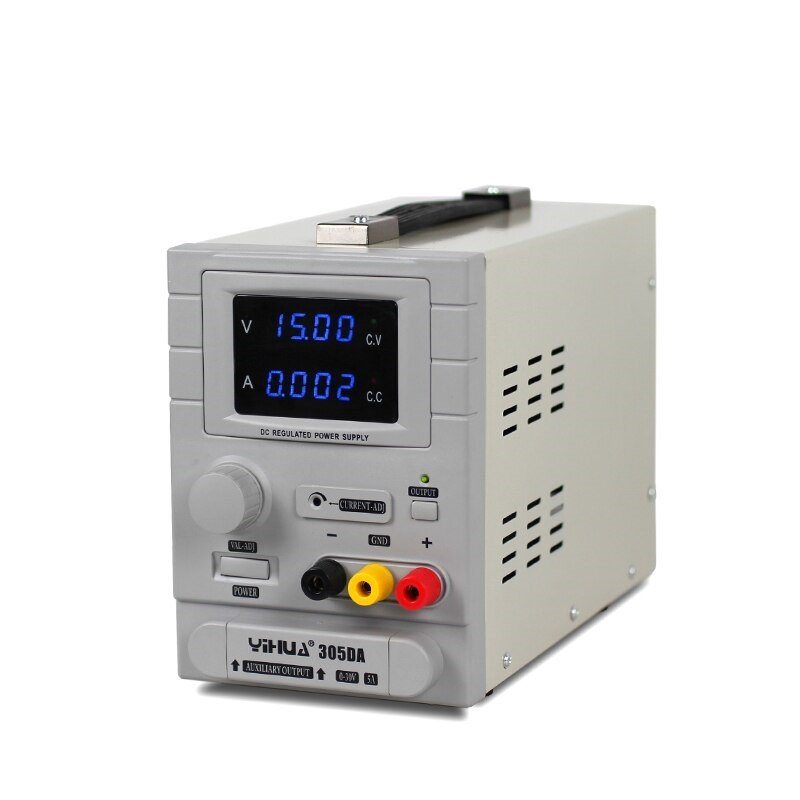

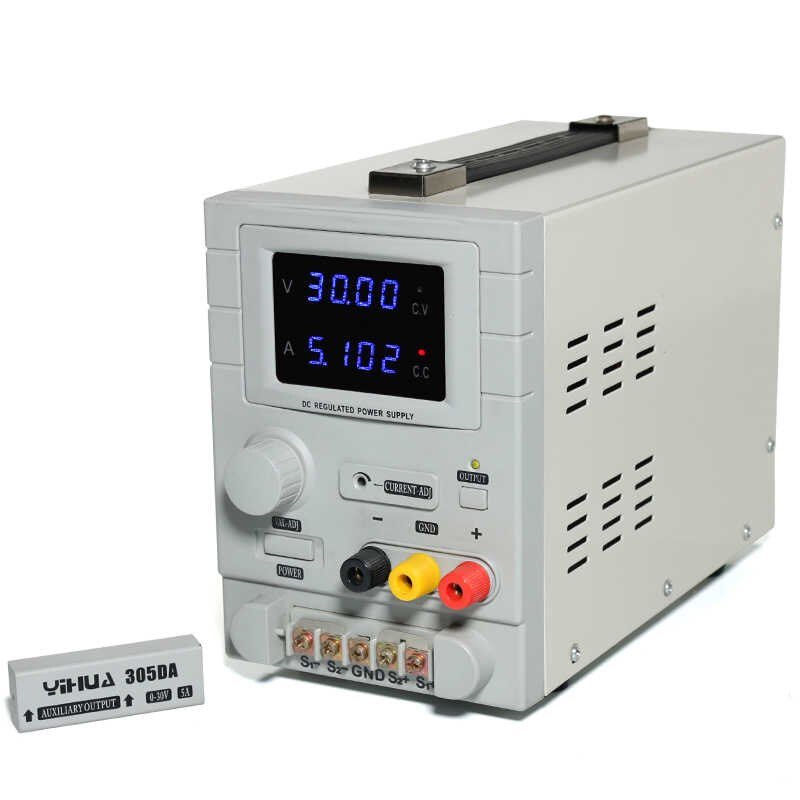

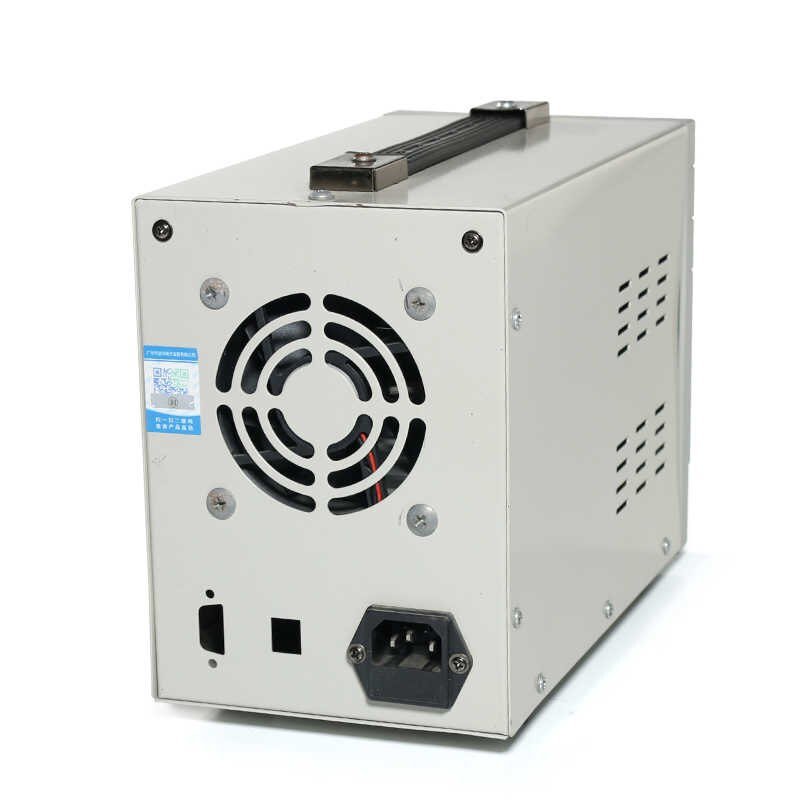

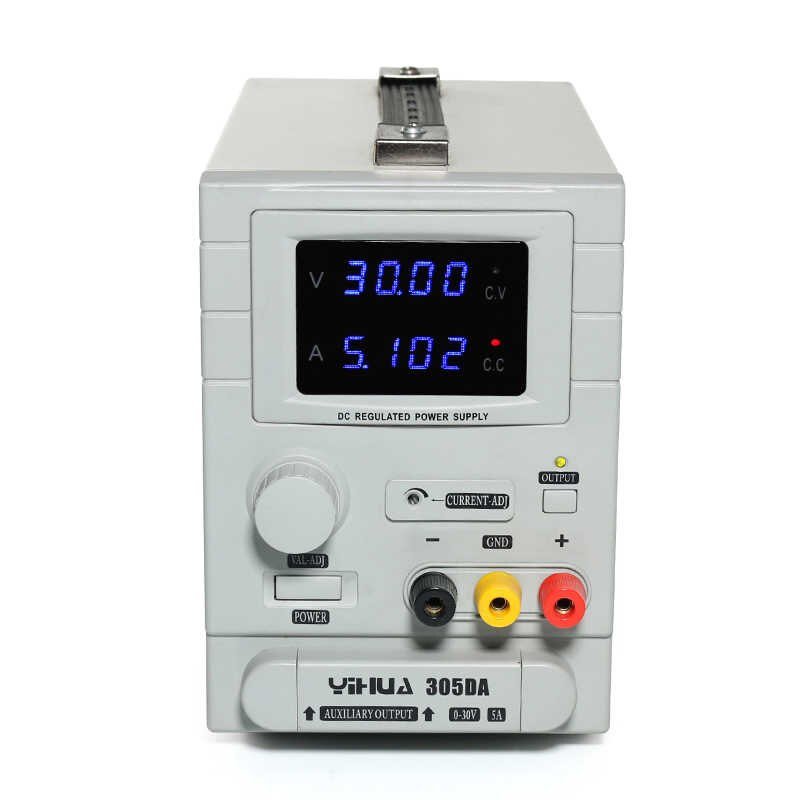

Yihua 305DA Dc Power Supply

Product Description product data 1.Rated working condition Working condition Temperature -10°C-40°C Relative humility≤90% Storage condition Temperature -10°C-40°C Relative humility≤80% 2.Output Output Power: 150W Power Supply Voltage: 110V/220V ±10% 50Hz/60Hz Voltage: 0~30V, 0~5A 3.Overload mediation Voltage 0.01% 3mV(I≤3A) Current 0.2% 3mA(I≤3A) 4.Power mediation rate and resolution Voltage: 0.01% 3mV Current: 0.01% 3mA Voltage: 10mV Current: 1mA (2mA Rated Current>3A) Setting accuracy: (25±5°C) Voltage: ≤0.1% Current: ≤10mA Rated Current >3A Ripple: (20Hz-20MHz) Voltage Ripple: ≤1mVrms (≤ 2mVrms >3A Temperature coefficient: (0-40°C) Voltage: ≤ 300ppm 10mV Current: ≤ 300ppm 10mA 5.Read back value resolution Voltage: ≤ 300ppm 10mV Current: ≤ 300ppm 10mA 6. Drift Voltage: ≤ 300ppm 10mV Current: ≤3 00ppm 10mA Usage 305DA DC power supply is designed for scientific research, product development, laboratories, universities, notebook and computer repair, and electronics production lines. Voltage and current is continuously adjustable within the nominal range of values. The power supply features high accuracy, high reliability, and an improved overload protection circuit, making it ideal for industrial use.
